Truck Introduction

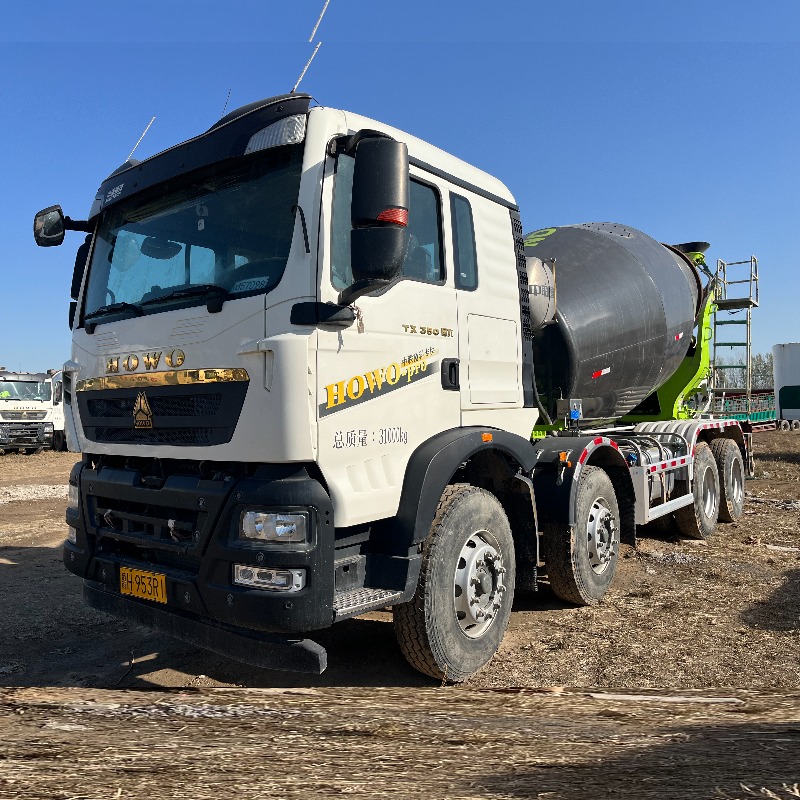

The Howo TX 8×4 20m³ Concrete Mixer Truck is a tough and reliable truck made for big construction jobs. It’s powered by a strong 340 horsepower diesel engine that meets Euro II or Euro III emission standards, so it’s both powerful and fairly eco-friendly. The truck uses a 10-speed manual gearbox, which helps the driver handle different road conditions smoothly and keep control when carrying heavy loads.
This truck has a big 20 cubic meter mixing drum made from durable Q345B steel. The drum mixes concrete while driving, so the concrete stays fresh and doesn’t harden or separate. It can load concrete quickly, with a feeding speed of about 3 cubic meters per minute, and it unloads fast too, at about 2 cubic meters per minute. This helps keep the work moving without delays.
The truck’s 8×4 wheel setup means it has eight wheels, with four powered ones, giving it great grip and stability, especially on rough or uneven ground. It uses strong 12.00R20 tires that handle tough conditions well. The size and wheelbase are designed to balance carrying lots of concrete with being easy enough to drive around on sites.
Inside, the TX cabin is roomy and comfortable, with air conditioning and an adjustable seat, plus a sleeper bed for drivers who spend long hours on the road. Safety is a priority too, with a solid air brake system to make sure the truck stops reliably.
Other handy features include a large 300-liter fuel tank, an air pressure system to clean the drum, and a hydraulic system to control the mixing and pouring of concrete. Overall, the Howo TX 8×4 20m³ Concrete Mixer Truck is a dependable choice for big projects like roads, bridges, and city buildings, combining power, efficiency, and comfort.
Parameter
|
Parameter |
Specification |
|
Model |
Howo TX 8×4 |
|
Engine Power |
340 HP |
|
Emission Standard |
Euro II / Euro III (optional) |
|
Engine Model |
WD615 / D12 Series |
|
Transmission |
10-speed manual (HW19710) |
|
Mixing Drum Capacity |
20 cubic meters |
|
Drum Material |
Q345B wear-resistant steel |
|
Feeding Speed |
≥ 3 m³/min |
|
Discharge Speed |
≥ 2 m³/min |
|
Wheel Configuration |
8×4 |
|
Tire Size |
12.00R20 |
|
Brake System |
Dual circuit air brake + exhaust brake |
|
Fuel Tank Capacity |
300 liters |
|
Cabin |
TX cabin with A/C and sleeper |
|
Overall Dimensions (L×W×H) |
Approx. 10,500 × 2500 × 3980 mm |
|
Wheelbase |
1800 + 3200 + 1350 mm |
|
GVW (Gross Vehicle Weight) |
Approx. 31,000 kg |
|
Curb Weight |
Approx. 16,500–17,000 kg |
|
Max Speed |
75–90 km/h |
