Sinotruk Howo 7 Series 6×4 Heavy Duty Dump Truck

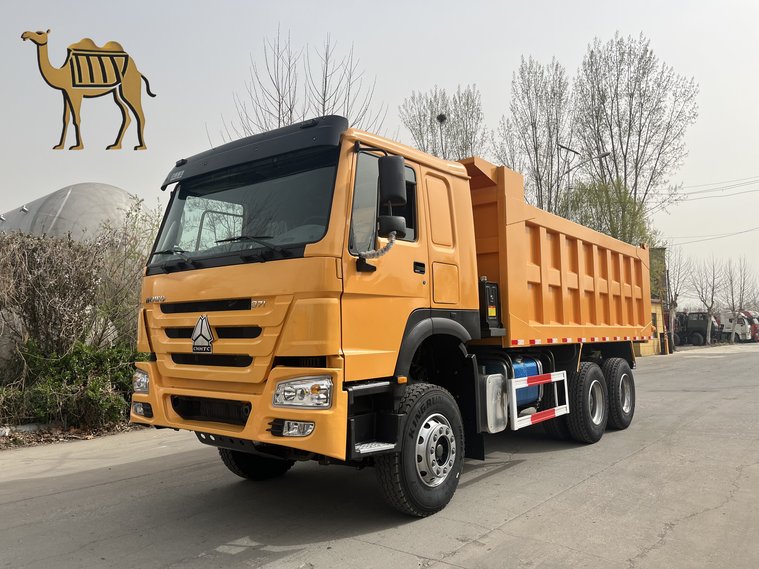

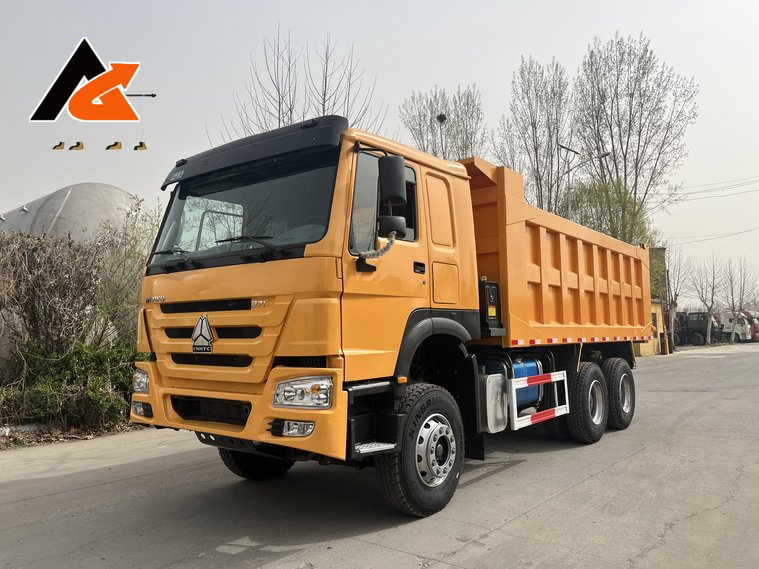

Sinotruk HOWO 371HP 6×4 Dump Truck
The engine of the Sinotruk HOWO 371HP 6×4 Dump Truck features high reliability, powerful performance, and low fuel consumption, with strong fuel adaptability suitable for African road conditions. It also incurs lower maintenance and service costs, ensuring lower operating costs.
The gearbox of the Sinotruk HOWO 371HP 6×4 Dump Truck is classic, mature, and reliable, utilizing Sinotruk’s self-developed gearbox with high performance and reliable quality.
The axles of the Sinotruk HOWO 371HP 6×4 Dump Truck are adaptable for various applications, demonstrating outstanding performance in durability, fuel efficiency, and noise reduction.
| Vehicle series | HOWO 6×4 Tipper | |
| Cab | HW76 | |
| Engine | Model | Euro 3:WD615.47C |
| Power(Ps/rpm) | 249/1900;279/2000 | |
| Maximum torque(Nm/rpm) | 1490/1200-1500;1590/1200-1500 | |
| Displacement(L) | 9.726 | |
| Transmission | SINOTRUK HW series 10 gears Transmission,Transmission with main and auxiliary transmission structure, , main transmission with double counter shaft ,auxiliary transmission with planetary reduction. with PTOWD 615.47 standard HW19710 | |
| Clutch | Φ430 diaphragm spring Clutch,Hydraulic control air assisted. | |
| Front axle | HF9 drum-type, rated load of 9t | |
| Rear axle | HC16 double reduction (central reduction+wheel reduction),speed ratio:5.73, 4.8 | |
| Suspension | Steer Axle | front and rear leaf spring suspension, front suspension with shock absorber,transverse stabilizer |
| Drive Axle | front and rear leaf spring suspension,rear suspension is disconnected type with transverse stabilizer. | |
| Braking system | Service brake | dual-circuit air pressure brake |
| Parking Brake | spring storage energy without air | |
| Auxiliary brake | Engine exhaust braking. standard Engine EVB,ABS, optional auto clearance adjusting arm. | |
| Electric system | Voltage | 24V |
| Generator | 2240W | |
| Batteries | 12V/165Ah,2 pieces | |
| Starter Power | 24V,7.5kW | |
| Wheels & Tyres | Tyres | 12.00R20 |
| Optional | 12.00R24,12.00-24 | |
| Fuel Tank | Capacity | 300 Liter |
| Weights (kg) | Curb weight(vehicle/chassis) | 12170/8630;12290/8660;12450/8690;12270/8710 |
| Gross Vehicle Weight | 25000 | |
| Rated load | 12420~12700 | |
| Vehicle Dimensions (mm) | Overall length x Overall width x Overall height | (7545~8545)×2496×3170/3450 |
| Wheelbase | (3225~3825)+1350 | |
| Front/rear overhang(vehicle/chassis) | 1500/(1470/715);1500/(1670/740);1500/(1870/900) | |
| Wheel track of front axle | 2041 | |
| Wheel track of rear axle | 1830/1850 | |
| Performance | Maximum speed(km/h) | 79/83 |
| Maximum gradeability(%) | 20 | |
| Minimum turning diameter(m) | 15/16/17 | |
Can’t find the desired vehicle model? Please contact us.
HOWO Dump Truck is a specialized transportation vehicle widely used in various fields such as construction, mining, and logistics. Known for its robust carrying capacity, stable operational performance, and efficient transport efficiency, it has gained global recognition.
The application range of the HOWO Dump Truck includes, but is not limited to, the following areas:
- Construction Engineering: HOWO Dump Trucks are used to transport construction materials such as sand, stones, and earthwork, providing essential support for construction sites.
- Mining Extraction: In the mining industry, these trucks are primarily used for transporting ore and waste rock, playing a crucial role in mine production.
- Road Construction: During roadwork, HOWO Dump Trucks can carry materials like asphalt and concrete, ensuring the smooth progress of highway construction.
- Logistics Transportation: These trucks are also suitable for logistics operations, particularly in the transportation of bulk materials, where they offer significant advantages.
The capacity range of HOWO Dump Trucks is quite extensive, with the maximum capacity reaching up to 40 cubic meters, and the minimum capacity starting from 5 cubic meters. Users can select different capacity models based on their specific transportation needs.
The price of HOWO Dump Trucks varies depending on the model, configuration, and other factors. Generally, the price range is between several hundred thousand to over one million yuan.
The dimensions of HOWO Dump Trucks also vary according to the model and capacity. Typically, the length ranges from 6 to 10 meters, the width from 2 to 2.5 meters, and the height from 3 to 4 meters.
