Description
Production description
This Howo 6×4 dump truck is geared up with a 95% new remanufactured engine. The refurbishment steps for our 95% new remanu-factured engine are: The complete engine was once disassembled. The components have been cleaned utterly with industrial ultrasonic waves. The worn and aged components have been discarded and changed with new ones. The look components have been additionally polished. Some components have been rusty. To make sure the overall performance of the engine, we used
expert equipment for first-rate assembly. Next, the oil pump was once examined and calibrated. After the oil pump check used to be completed.We behavior on-machine tests, let the statistics communicate for itself, the use of machines and computer systems to become aware of the engine load (30-60 tons). Then, we check the engine’s performance, together with power, torque, rotational speed, water temperature, oil temperature, exhaust temperature, exhaust gasoline temperature, etc., with specific data. We decide whether or not this engine is performing properly by using evaluating it with the fashionable statistics of the new Sinotruk engine. Whether certified or not. And a paper take a look at record can be printed. By adjusting the modifications of the load, the overall performance parameters of the engine beneath exclusive hundreds can additionally be detected. The sealing overall perfor-mance was once additionally examined thru load operation. Check for any oil leakage, seepage or different phenomena.After the inspection meets the requirements of the new engine, we will spray paint to entire the refurbishment of the 95% new remanufactured engine that our clients have been geared up with when buying the truck. This ensures that your truck has a lengthy carrier exist-ence and high-quality load capacity. We are dedicated to supplying you with exceptional Used trucks.
Specification
|

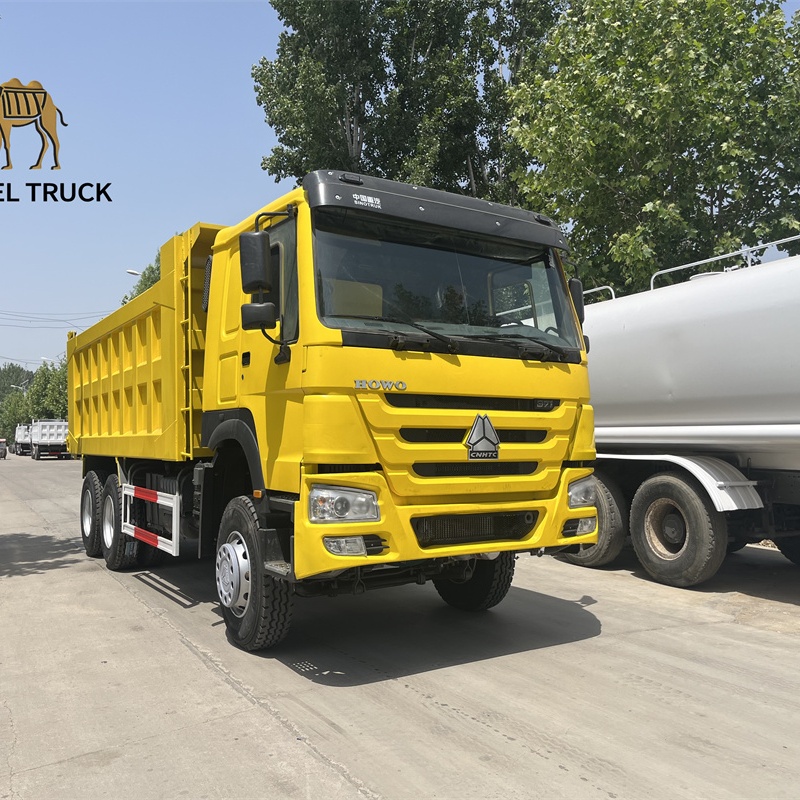

HOWO 6x4DUMP TRUCK |
||||
|
Dimension(Lx W xH)（unloaded）（mm） |
8600*2500*3400mm |
|||
|
Bucket Size(L*W*H)（unloaded）（mm） |
5600*2500*1500 |
|||
|
Approaching angle/Departure angle（°） |
19/26° |
|||
|
Overhang(front/rear) (mm) |
1500/725 |
|||
|
Wheel base (mm) |
3625+1350mm |
|||
|
Max speed（km/h） |
101 |
|||
|
Curb weight（kg） |
12500 |
|||
|
Driving style |
RHD/LHD |
|||
|
Engine(Steyr technology, made in China) |
Model |
WD615.47，water-cooled，four strokes，6 cylinders in line with water cooling，turbocharged and inter-cooling, directly injection |
||
|
Fuel type |
Diesel |
|||
|
Power, max（kw/rpm） |
371HP/247kW/2200rpm |
|||
|
Emission |
EURO 2/3 |
|||
|
Fuel tanker capacity（L） |
400L aluminum oil tank |
|||
|
Transmission |
Model |
HW19710, 10 speeds forward and 2 reverse |
||
|
Brake system |
Service brake |
Dual circuit compressed air brake |
||
|
Parking brake |
spring energy, compressed air operating on rear wheels |
|||
|
Steering system |
Model |
ZF8118 |
||
|
Front axle |
HF9 |
|||
|
Rear axle |
HC16 |
|||
|
Tire |
12R22.5/12.00R20 |
|||
|
Electrical system
|
Battery |
2X12V/165Ah |
||
|
Alternator |
28V-1500kw |
|||
|
Starter |
7.5Kw/24V |
|||
|
Cab |
HOWO 76 New face cab（one bed inside), all-steel forward control, 55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. |
|||
Rebuild engine
Company profile
Shandong Camel Truck Co., Ltd. is placed in Liangshan, Shandong Province.China——the nation’s biggest used truck buying and selling hub and specialised automobile manufacturing base. Established in July 2019 and permitted as a pilot agency for used automobile exports by using the Ministry of Commerce of China. Relying on the wealthy nearby industrial assets and covera-ge support, we developed unexpectedly and has now come to be a benchmark corporation in the discipline of home used truck refurbishing, income and unique automobile manufacturing and sales, taking part in an awesome market reputation.
Packing and delivery
Camel Truck has considerable delivery experience, partnering with globally diagnosed transport groups and freight forwarders to make sure safe, timely, and least expensive transport of merchandise to vacation spot ports worldwide.
